Ring vs Ringless Meter Socket

Ring vs Ringless Meter Socket

A meter socket, also known as an electricity meter base or meter mounting device, refers to the base component of an electricity meter. It is used to secure and connect the meter, providing a channel for power and signal transmission. Simply put, the meter socket is the "base" on which the meter is installed and connected.

Functions of a Meter Socket:

• Securing the meter: Fixes the meter to a wall, meter box, or other support structure, ensuring stable and reliable operation.

• Connecting to the power supply: Provides terminals or connection points for wiring the power supply to the meter.

• Connecting to the load: Provides terminals or connection points for wiring the electrical load, delivering power to connected devices.

• Protecting the meter and wiring: Offers insulation and protection, shielding the meter and wiring from environmental factors.

• Facilitating installation and maintenance: A well-designed meter socket allows for easy installation, replacement, and maintenance of the meter.

Classification Based on Meter Fixing Method:

• Ring meter base

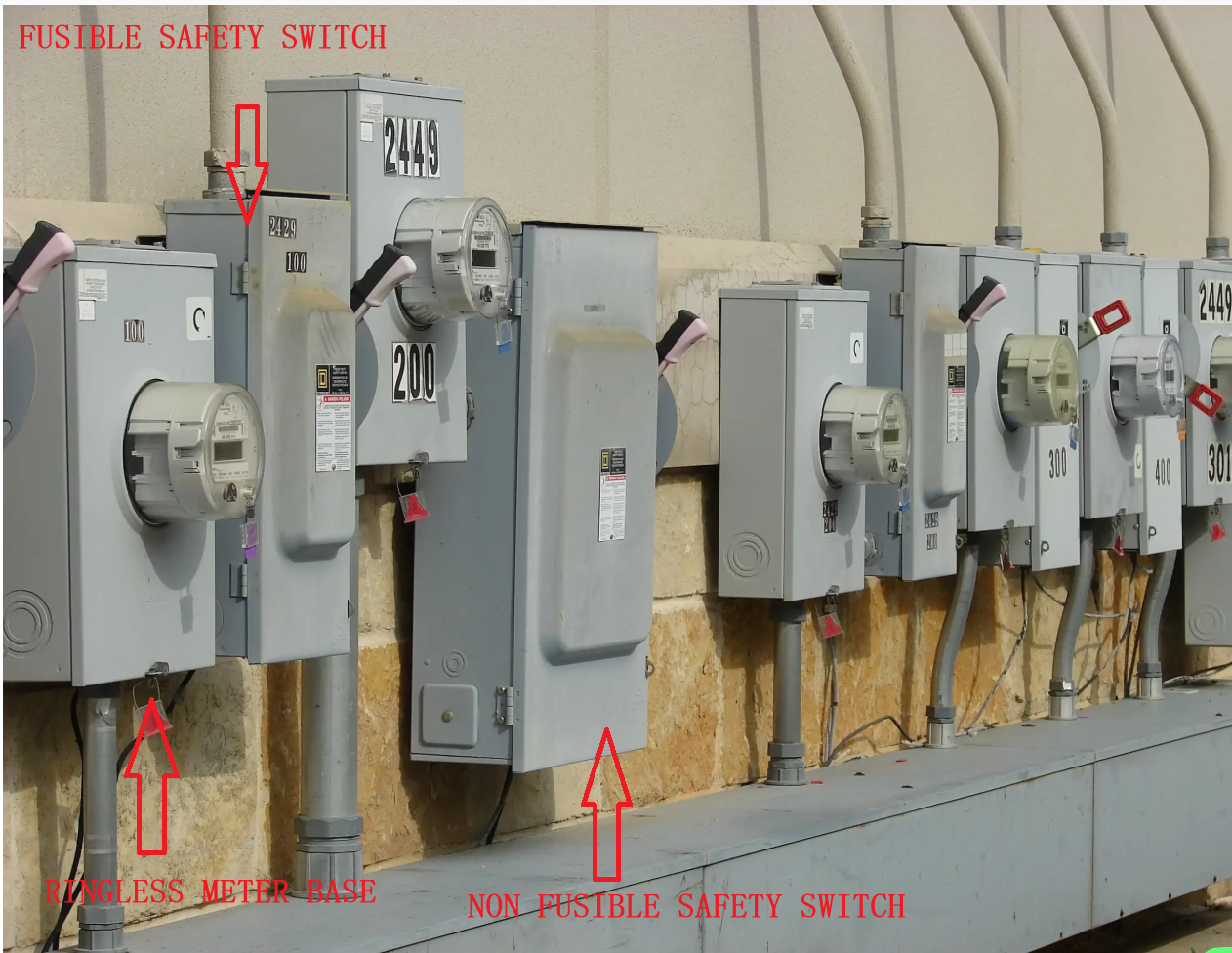

• Ringless meter base

A ring-type meter socket features a removable ring-shaped sealing gasket (typically made of stainless steel or galvanized material) that forms a closed structure when tightened with bolts.
A non-ring-type meter socket uses a one-piece or snap-fit design without an independent sealing ring.
Both structures require tamper-evident seals or locking devices after installation to ensure that any removal of the meter leaves visible traces. The specific type used is determined by the local power utility.

Core Advantages of Ring-Type Meter Sockets:

• Tamper-resistant design: The ring structure requires specialized tools for disassembly, preventing unauthorized access.

• Water and dust resistance: The sealing gasket provides IP54-level protection, making it suitable for harsh outdoor environments.

• Ease of maintenance: Allows meter removal and installation without disconnecting wires.

Core Advantages of Non-Ring-Type Meter Sockets:

• Lower cost: Reduced metal components lower manufacturing costs by approximately 40%.

• Faster installation: Direct connection to the meter eliminates the need for sealing gasket adjustments.

• Lightweight: On average, 2-3 kg lighter than ring-type structures.

Typical Applications:
Ring-Type Meter Sockets:

• Utility metering (e.g., centralized installations by power companies)

• Rainy/high-humidity regions

• Industrial and commercial scenarios requiring anti-tampering measures

Non-Ring-Type Meter Sockets:

• Residential temporary power supply

• Dry climate zones

• Budget-constrained infrastructure projects

Selection Recommendations:
Prioritize ring-type when:

• Compliance with ANSI C12.10 standards is required.

• Exposure to salt spray/chemical corrosion is a risk.

• Frequent meter replacement or reading is necessary.

Consider ringless-type when:

• Budget constraints are strict.

• Installation is in a dry indoor environment.

• The power supply is temporary (<3 years).

The essential function of a meter socket is to record electricity consumption. Although ring-type and non-ring-type structures differ in physical characteristics and safety logic, their core responsibilities remain the same. If in doubt, consult the local power utility.
