2. Main Technical Specifications
| Item |
Parameter |

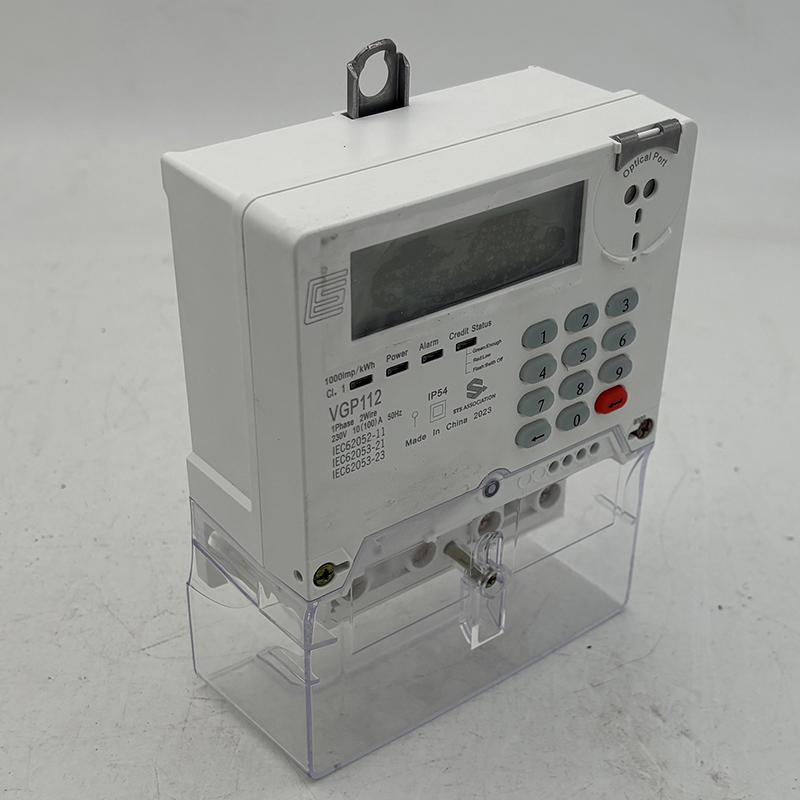

| Model |
VGP112 |
| Standard |
STS Association Certified, IEC62052-11, IEC62053-21, IEC62053-23 |
| Phase & Wire |
Single Phase 2 Wire |
| Rated Voltage |
230V AC 50Hz |
| Current Spec. |
10(100)A |
| Accuracy Class |
Class 1 |
| Pulse Constant |
1000imp/kWh |
| Protection Grade |
IP54 |
| Operation Mode |
Keypad token recharge (20-digit code) |
| Display |
LCD digital screen |
| Communication |
Optical port for meter reading & setting |
| Anti-tamper |
Sealable transparent terminal cover, anti-tamper alarm |
| Function |
Low credit reminder, auto cut-off, power consumption record, fault alarm |
| Installation |

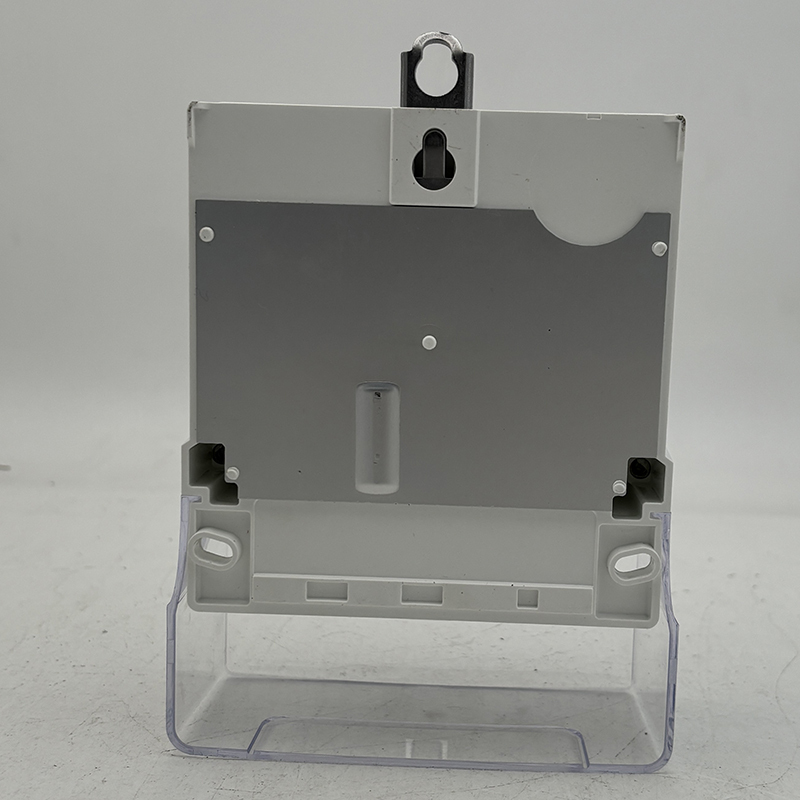

Wall mounted / DIN rail mounted |
3. Core Product Advantages
3.1 Official STS Standard Certified
Comply with global STS prepaid encryption protocol, compatible with all local STS vending systems in Africa, stable token code recognition without decoding failure.
3.2 Keypad Token Recharge, No IC Card Needed
Consumers get 20-digit recharge token from power station, input via built-in numeric keypad to top up electricity, easy operation for rural users.
3.3 IP54 Dustproof & Waterproof Outdoor Housing
Tight sealing structure adapts harsh outdoor environment, anti-rain and dust, suitable for corridor, outdoor pole installation.
3.4 Complete Credit Reminder & Auto Cut-off System
Green light for sufficient credit, red flash for low balance alarm; automatically disconnect power when credit is exhausted, restore power after recharging.
3.5 Anti-tamper & Anti-electricity Theft Design

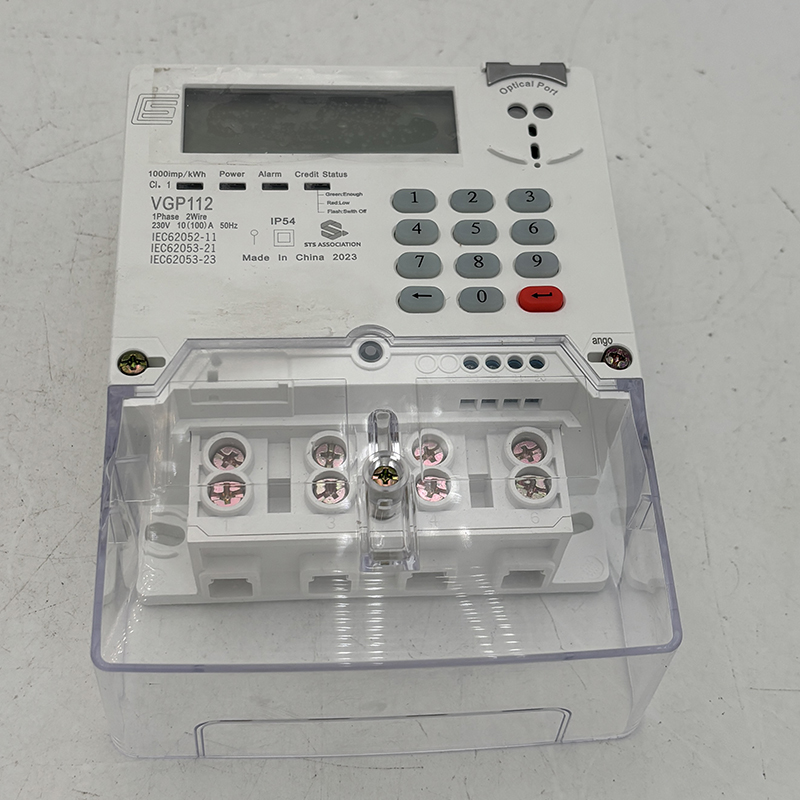

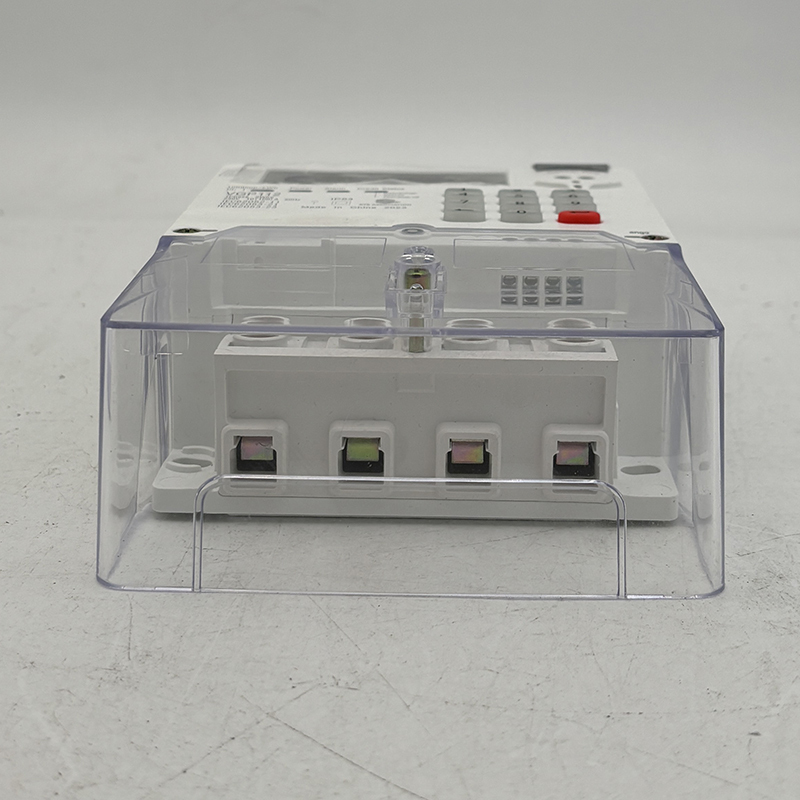

Transparent lockable terminal cover with lead seal hole; meter triggers alarm once cover is opened illegally, effectively stop bypass stealing.
3.6 High Precision LCD Real-time Display
LCD screen shows remaining credit, total consumed energy, voltage, alarm status, clear reading day and night.
3.7 Optical Port For Remote Management
Optical communication interface supports staff on-site meter reading, parameter modification, data export for power grid management.
4. Wide Application Scenarios
- African rural & urban residential buildings
- Small shops, rental houses, construction temporary power supply
- PV off-grid power station matching metering equipment
- Local grid prepaid power transformation projects
5. Working Principle
Operators generate unique 20-digit STS recharge token for users after payment. Users input the code via the meter keypad, the meter decrypts the token and adds corresponding electricity credit. The built-in metering chip continuously calculates real-time power consumption and deducts remaining credit. When the residual credit hits warning threshold, the alarm indicator flashes; credit zero triggers internal relay to cut off output power.
6. Packaging Information
Independent neutral carton packaging, 10 pcs per export carton. Support OEM customized logo, silk printing and customized outer box design.
