Philippines NEMA type 3R Three phase 200A 7jaws Ansi Square Meter base

Description

Philippines NEMA type 3R Three phase 200A 7jaws Ansi Square Meter base

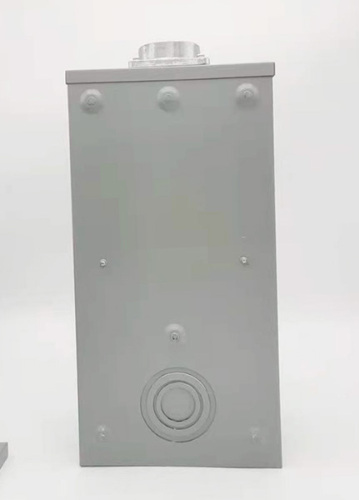

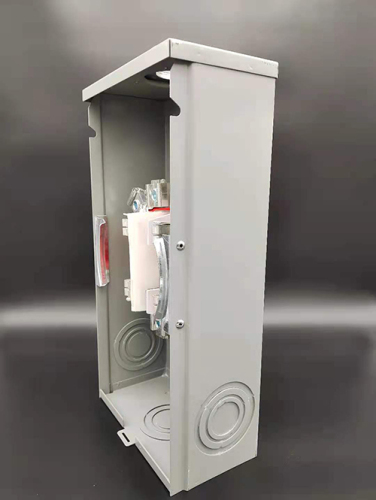

NEMA type 3R enclosure constructed from #16 galvanized steel sheet with light gray-powder coat finish ,units are furnished with 2" hub opening as standard

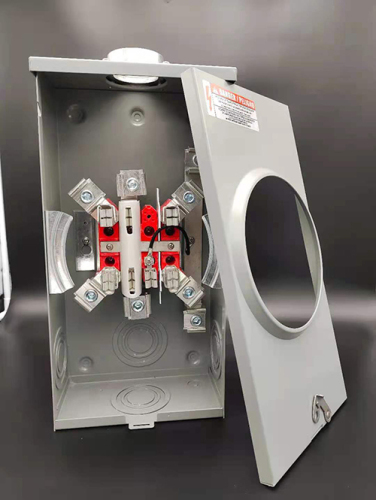

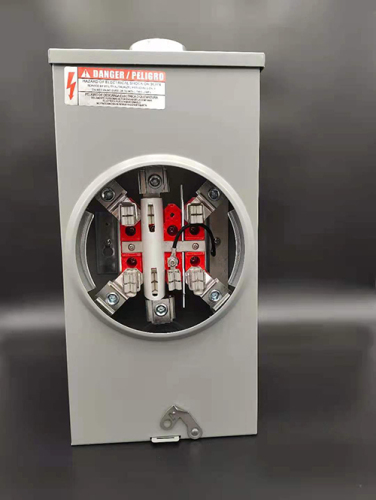

1.interior:with meter guides for easy meter insertion, double action terminal jaws (deep-type with reinforced spring clip)made of high strength copper alloy designed for positive engagement with meter blade, mouting base is made of glass polyester for phenolic terminal blaock with excellent dielectric properties , terminal are tin-plated copper all alloy and rated for 200amp and 600volts design,terminal connection capacity will accommodate wire from AWG#6 to 4/0 AWG with removable terminal clamps for easy laying of wire into the terminal connector , tin-plated hexagonal head dome point screw

2. mounting bodies: provided with at least for 4pcs 1/4" mounting hold at the back with 1/8" of mounting base between the back of the socket enclosure and mounting surface . neutral terminal is mechanically riveted and bolted to the socket enclosure to assure firm and positive electrical bonding

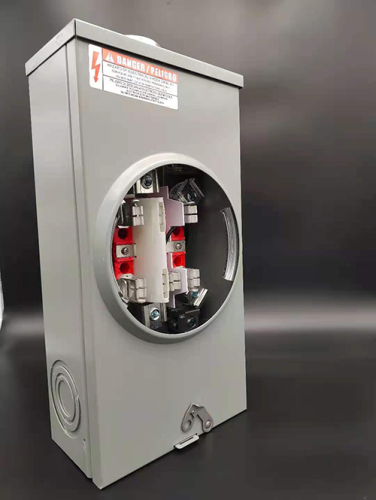

3.cover :units are provided with one piece ringless type cover with light gray powder coat paint finish with stainless steel swinging latch with sealing provision using wire seals pladlock type seals or padlock to secure the cover to the socket body

4.international standard such as NEMA 250 ANSI CL12.7 UL.414

Application	Meter Socket 7jaws 200A
Standard	Non UL Listed;Type 3R
Voltage Rating	600 Volts Alternating Current
Amperage Rating	100 Continuous Ampere
Phase	3Phase
Frequency Rating	60 hertz
Size	42cm L20.6cm W11.6cm H
Cutout Size	No Main Breaker
Terminal	three Mechnical
Insulation	Glass Polyester
Mounting	Surface Mount
Enclosure	Aluminum With Powder Coat Finish
Jaw Quantity	4 Terminal
Bypass Type	No Bypass
Number Of Meter Positions	1 Position
Equipment Ground	Triplex Ground
Hub Opening	1 Inch Hub-2inch
Line Side Wire Range	6 AWG-350kcmil
Load Side Wire Range	12-1 AWG
